Trusted Source for Precision PCB Registration Tools
Introducing Iron Mountain™, a new name backed by over 40 years of proven industry PCB registration performance and leadership in the lamination tooling industry. Iron Mountain is located in Washington State, USA and all products and technology are proudly made in the USA.

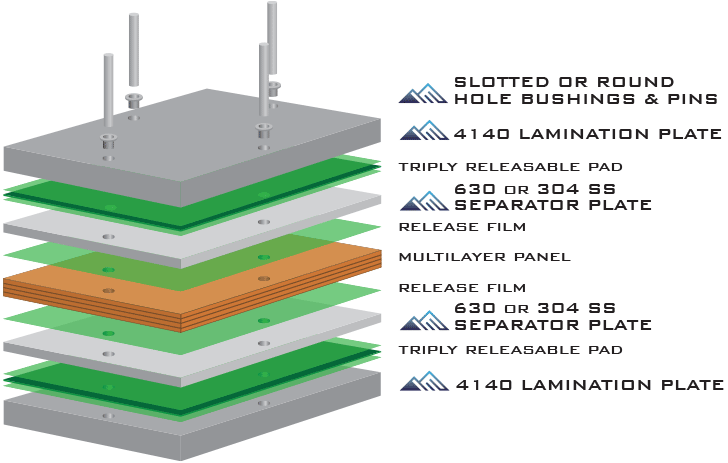

PRODUCTS & SERVICES
| Tooling Plates | US-sourced 4140 Tool Steel with proprietary heat treat processing for improved stability over competition |
| Separator Plates | Hard Stainless as well as 304 Stainless |
| Bushings | Proprietary heat-treated Tooling Steel with a hardness of around 58-60 Rockwell C. Bushing holes are made with a special broaching process (instead of being EDM cut), ensuring proper registration every time. |
| Pins | Proprietary heat-treated Tooling Steel for strength and long life. Custom sizes and types are available by special order. |
ADVANTAGES
- Lamination process audits by industry experts ensures correct tooling design
- Precision US-based Aerospace industry certified CNC machining capabilities provide industry leading registration and consistent product performance
- US-sourced materials and manufacturing provide short lead times and guaranteed product quality
- Service and support provided by industry leading distributor — Matrix Electronics
ACCESSORIES & SERVICES
A complete array of products and services is available for your lamination process.
- Lamination/Separator Plate Refurbishment
- Pin Cleaning Machines and Media
- Pin and Bushing Gauging Kits
- Bushing Installation Kits
- Lamination Plate Flatness Gauging Kits
- Onsite Multiline Post Etch Punch Upgrades (from analog to digital technology)
For more info, contact
Jim Alves
Phone (408) 477-2963 ext.3311
